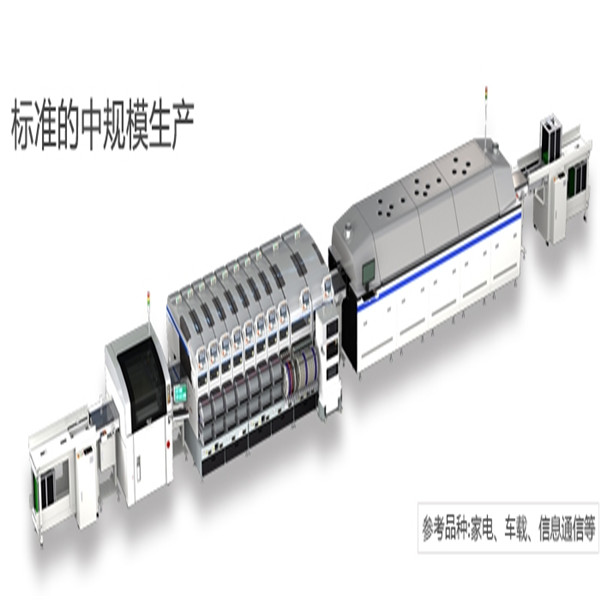

Both cost and versatility
NXT series can choose the number of modules according to the customer's production volume and production variety, and produce with the minimum configuration.
The combination of working head type, component supply unit, handling rail type and machine size can provide customers with the best machine configuration.
NXT placement machine-PCB size: minimum: 48mmx48mm maximum: 510mmx534mm
NXT placement machine-placement speed: H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200
Placement accuracy: H12S / H08 / H04: 0.05mm (3sigma) cpk≥1.00
SMD range: H12S: 0402 ~ 7.5x7.5mm height: MAX: 3.0mm
H08: 0402 ~ 12x12mm height: MAX: 6.5mm
H04: 1608 ~ 38x38mm height: MAX: 13mm
H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) Height: MAX: 25.4mm
G04: 0402 ~ 15.0mmx15.0mm height: MAX 6.5mm
Mounted material rack: MAX: 20 types / module (8mm material belt conversion)
Power supply: 3P / 200V / 10KVA
Air flow: 0.5MPa (5kgf / cm2), 10NI / min.
NXT Mounter-Dimensions: 2M II Base: 740 (L) x 1934 (W)
4M II base: 1390 (L) x 1934 (W)
H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)
NXT placement machine-machine weight: 1,350kg
